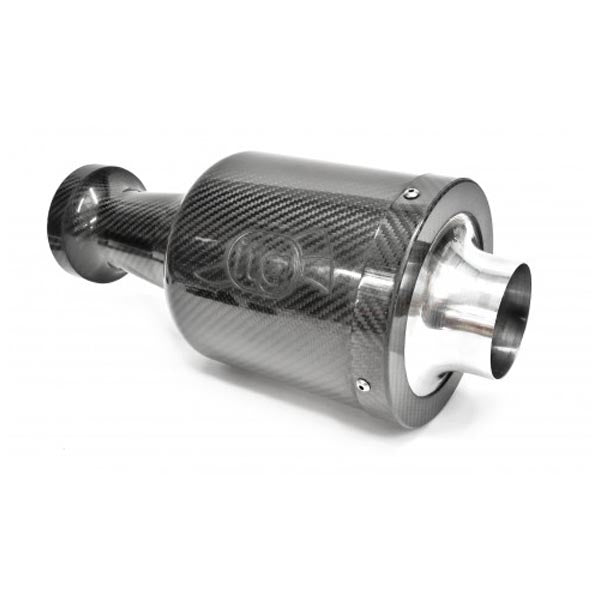

ITG RAB65 Carbon Universal Air Box this universal Carbon small enclosure designed with a variety of sizes and compatible with the ITG JC60FC large foam cone filter.
Application
- Universal
Specification
A - (Length) Measurement taken from airbox inlet (C), to filter spinning outlet (D).
Rebated ARAB Spinning reduces length by approx. 20mm
B - (Width) Measurement taken at the widest point of filter lid spinning.
Do not measure from screw to screw.
C - Inlet (Dirty air in) measurement taken as internal diameter.
See table for duct sizing guide.
D - Outlet (Clean air out) measurement taken as internal diameter and relates to ARAB spinning used.
All dimensions are in (mm)
E - Carbon Housing Only
F - Any of the ITG JC60FC Large Cone filters will fit inside this airbox.
RAB65 Size Options
| Part No. | A (Length) | B (Width) | C (Inlet) | D (Outlet ID / OD) | BHP |
|---|---|---|---|---|---|
| RAB65 w/ JC60/58FC | 354 | 163 | 99 | 58 / 61 | 200 |
| RAB65 w/ JC60/60FC | 373 | 163 | 99 | 60 / 63 | 220 |
| RAB65 w/ JC60/63FC | 373 | 163 | 99 | 63 / 66 | 240 |
| RAB65 w/ JC60/67FC | 375 | 163 | 99 | 67 / 70 | 270 |
| RAB65 w/ JC60/70FC | 375 | 163 | 99 | 70 / 73 | 290 |
| RAB65 w/ JC60/73FC | 371 | 163 | 99 | 73 / 76 | 300 |
| RAB65 w/ JC60/78FC | 365 | 163 | 99 | 78 / 81 | 310 |
| RAB65 w/ JC60/84FC | 367 | 163 | 99 | 84 / 87 | 330 |
