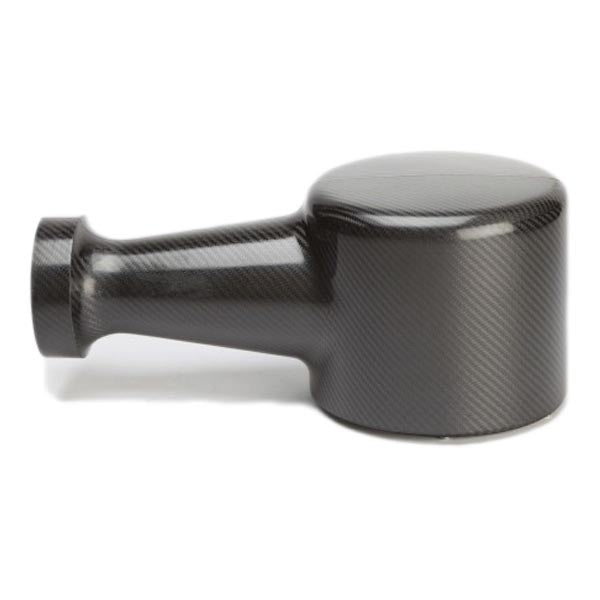

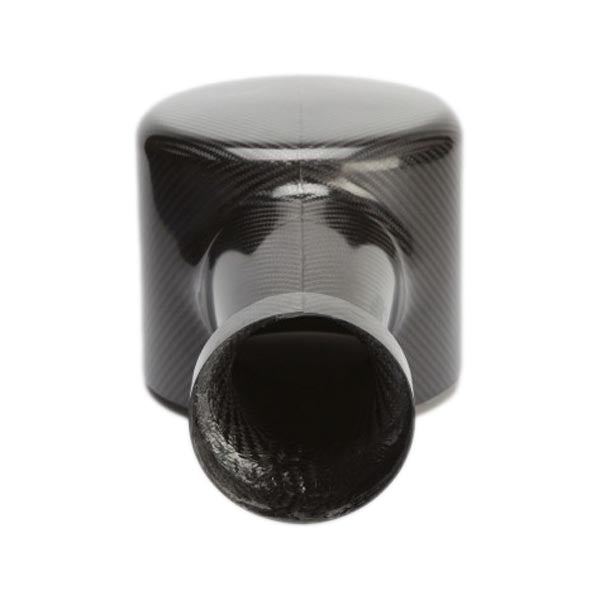

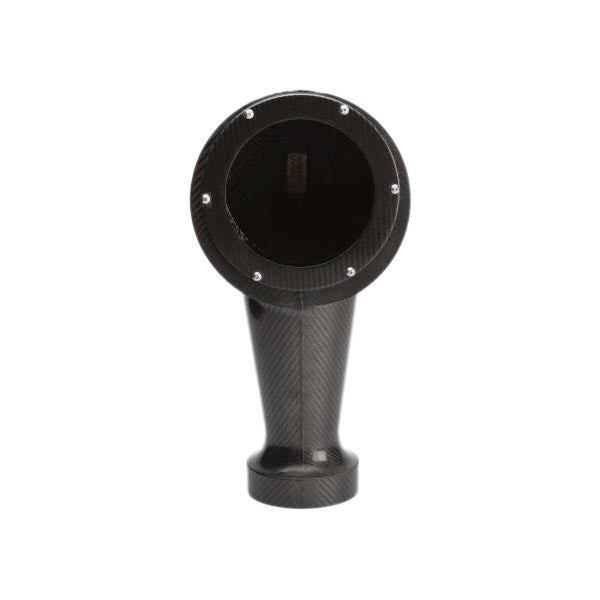

ITG AB80 Carbon Universal Air Box this universal Carbon small enclosure designed with a variety of sizes and compatible with the ITG JC60 large foam cone filter.
Application
- Universal

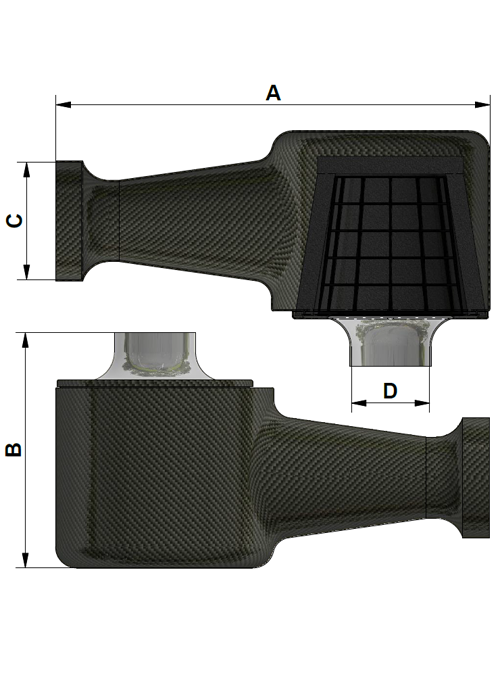

Specification
A - (Length) Measurement taken from airbox inlet (C), to filter spinning outlet (D).
Rebated ARAB Spinning reduces length by approx. 20mm
B - (Width) Measurement taken at the widest point of filter lid spinning.
Do not measure from screw to screw.
C - Inlet (Dirty air in) measurement taken as internal diameter.
See table for duct sizing guide.
D - Outlet (Clean air out)
All dimensions are in (mm)
E - Carbon Housing Only
F - Any of the ITG JC60 Large Cone filters will fit inside this airbox.
AB80 Size Options
| Part No. | A (Length) | B (Width) | C (Inlet) | D (Outlet ID / OD) | BHP |
|---|---|---|---|---|---|
| AB80 w/ JC60/80C | 443 | 240 | 120 | 80 / 83 | 450 |
| AB80 w/ JC60/86C | 443 | 238 | 120 | 86 / 89 | 480 |
| AB80 w/ JC60/93C | 443 | 235 | 120 | 93 / 96 | 500 |
| AB80 w/ JC60/99C | 443 | 235 | 120 | 99 / 102 | 520 |
| AB80 w/ JC60/114C | 443 | 230 | 120 | 114 / 117 | 530 |
| AB80 w/ JC60/124C | 443 | 225 | 120 | 124 / 127 | 540 |
