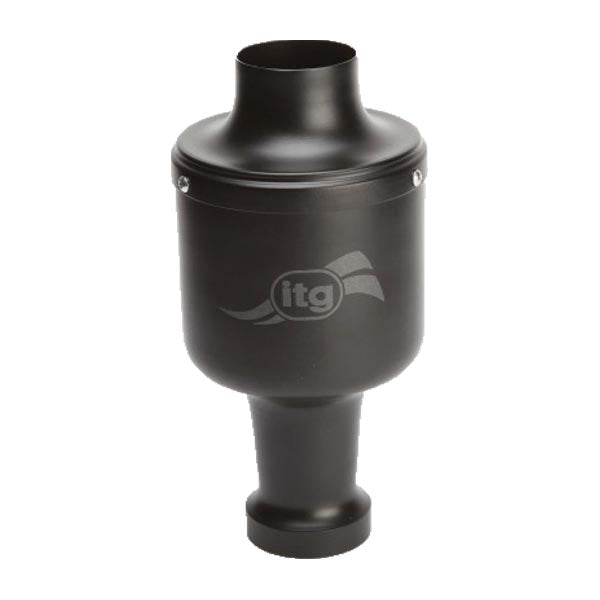

ITG ARAB65 Aluminium Universal Airbox this airbox is the aluminium version of the RAB65. Available in multiples sizes this is a great way to reduce heat soak, increase performance and amplify the engine tone.
Application
- Universal
- Ford Focus MK1
- Ford Focus MK2
- Lotus Elise ( K series engine)
Specification
A - (Length) Measurement taken from airbox inlet (C), to filter spinning outlet (D).
Rebated ARAB Spinning reduces length by approx. 20mm
B - (Width) Measurement taken at the widest point of filter lid spinning.
Do not measure from screw to screw.
C - Inlet (Dirty air in) measurement taken as internal diameter.
See table for duct sizing guide.
D - Outlet (Clean air out) measurement taken as internal diameter and relates to ARAB spinning used.
All dimensions are in (mm)
ARAB65 Airbox Size Options
Part No. | A (Length) | B (Width) | C (Inlet) | D (Outlet) |
---|---|---|---|---|
ARAB65/58 | 353.00 | 164.00 | 99.00 | 61.00 |
ARAB65/60 | 374.00 | 164.00 | 99.00 | 63.00 |
ARAB65/63 | 372.00 | 164.00 | 99.00 | 66.00 |
ARAB65/67 | 374.00 | 164.00 | 99.00 | 70.00 |
ARAB65/67R | 346.00 | 164.00 | 99.00 | 70.00 |
ARAB65/70 | 376.00 | 164.00 | 99.00 | 73.00 |
ARAB65/73 | 372.00 | 164.00 | 99.00 | 76.00 |
ARAB65/73R | 347.00 | 164.00 | 99.00 | 70.00 |
ARAB65/78 | 365.00 | 164.00 | 99.00 | 81.00 |
ARAB65/84 | 367.00 | 164.00 | 99.00 | 81.00 |
